Double-deck pulley
ProductDteails





The product is mainly used for the connection of theupper rail and the lower rail. As the product is designed with parallel upperand lower rails, and the second short slide rail connected under the firstshort slide rail, it can slide along the first slide rail to extend the slidingdistance. The pulley slides with four wheels and has two guide wheels, whichrun smoothly with low noise. It is installed in the rail and slides in parallelto the first level rail.

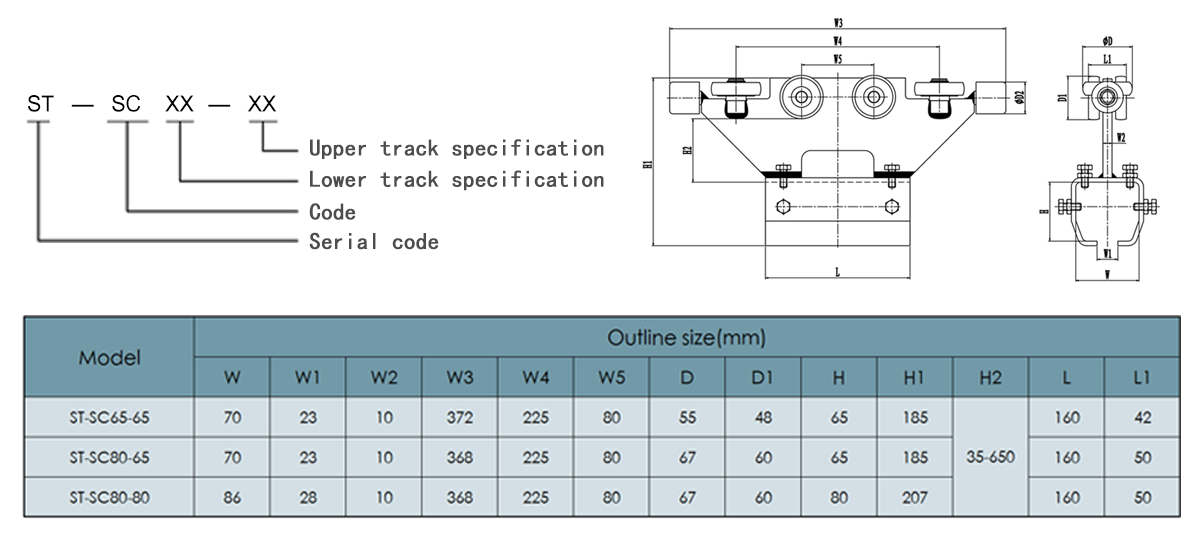

Product parameters
